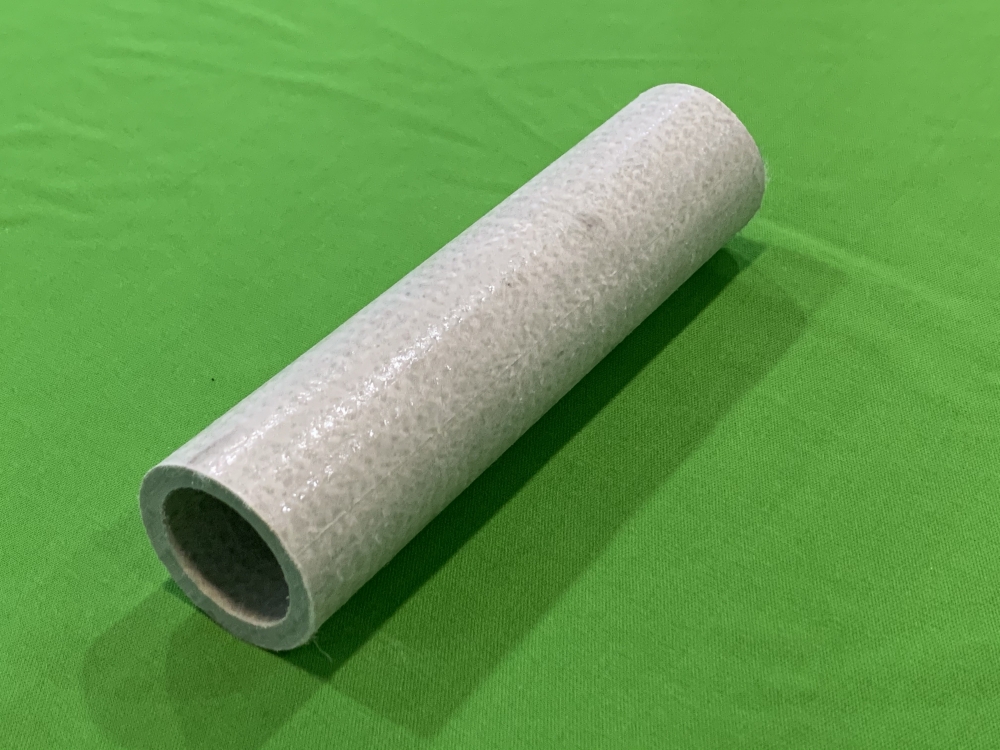

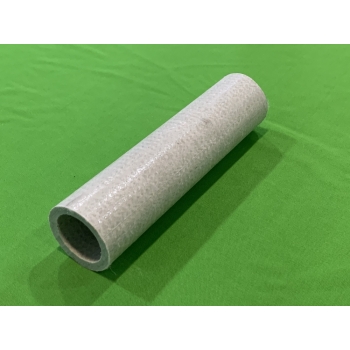

FRP Round Tube RT 38 mm Diameter x 5 mm Wall
Pultruded FRP round tube, 38 mm outside diameter with a 5 mm wall, used as the rail tube for handrails and guard rails. Light, rust free and non-conductive. RAL 7035 grey as standard.
FRP Round Tube RT 38 mm Diameter x 5 mm Wall
The RT 38 x 5 is a pultruded fiberglass (FRP) round tube: outside diameter 38 mm; wall thickness 5 mm. It is the rail tube used for handrails and guard rails. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Tiub bulat FRP diameter 38 mm, dinding 5 mm, untuk pagar tangan (handrail) dan pagar pengadang. Ringan, tidak berkarat dan tidak mengalirkan elektrik.
Specifications
| Model code | RT - 38 x 5 |
|---|---|
| SKU | RT38 |
| Profile | Round tube |
| Outside diameter | 38 mm |
| Wall thickness | 5 mm |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Top and mid rails of handrails
- Guard rails on platforms and tank tops
- Ladder side rails and grab bars
- Light posts and frames
- Rails near electrical equipment
Choosing This Size
A 38 mm tube is a comfortable size to grip, which is why it is used for top rails and mid rails. The 5 mm wall gives a stiff rail that does not dent easily. The catalogue gives the inside diameter as about 28 mm, which helps when choosing fittings.
Frequently Asked Questions
What is the inside diameter?
About 28 mm, from the catalogue (38 mm outside, 5 mm wall). Confirm with us before ordering fittings.
Can I get it in safety yellow?
RAL 7035 grey is standard. Yellow and other colours are made on request.
Is a fire-retardant version available?
Yes. Profiles in fire-retardant resin to ASTM E84 are made on request. Vinyl ester resin is also available on request for stronger chemicals.
Why use FRP instead of steel?
FRP is much lighter than steel, does not rust, does not conduct electricity and resists many chemicals and salt air, so it needs little maintenance in wet or corrosive sites.
Berapa harga tiub bulat FRP RT 38 x 5?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
Related Sizes and Products

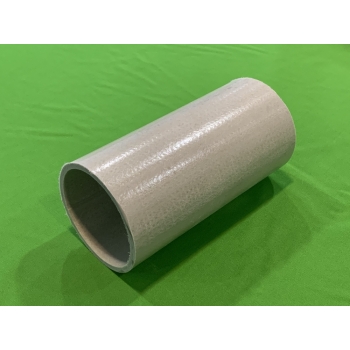

Nearest sizes and related items: RT 76.2 x 4, 3 in round tube →, Square rung 25.4 mm →, FRP handrail system →.
See every size in FRP Round Tubes →.
