FRP Square Rung RG 25.4 x 25.4 x 4.76 mm (1 x 1 in)
Pultruded FRP square rung, 25.4 x 25.4 mm (1 x 1 in) with a 4.76 mm wall. Used as rungs in FRP ladders and caged ladders and as infill rails in handrails. Rust free and non-conductive.
FRP Square Rung RG 25.4 x 25.4 x 4.76 mm (1 x 1 in)

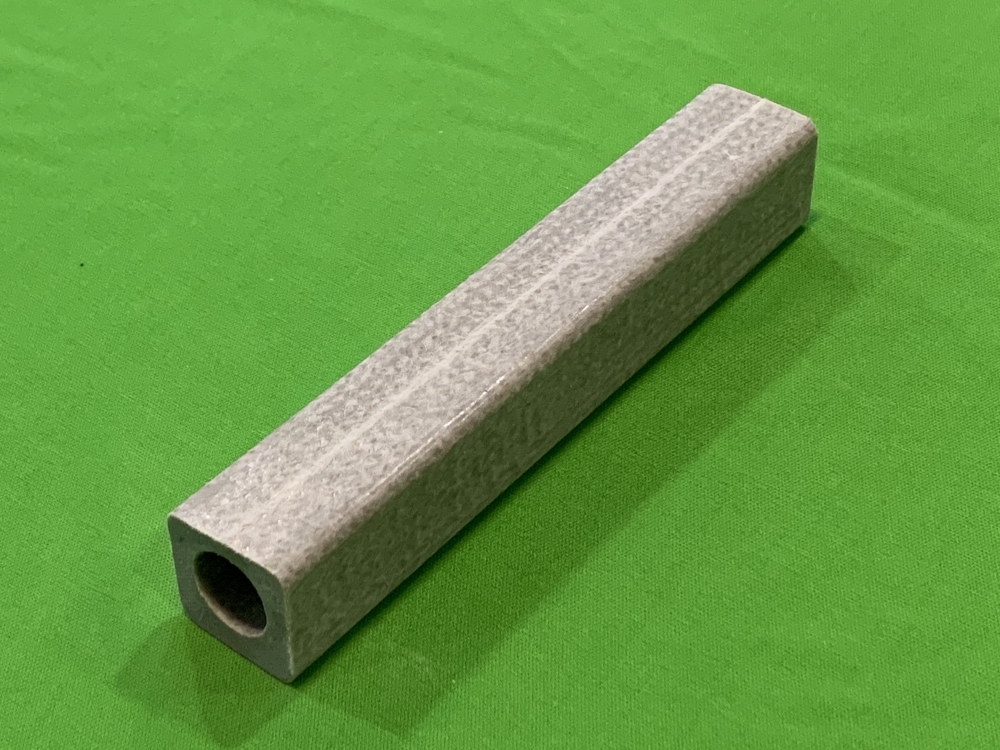

The RG 25.4 x 25.4 x 4.76 is a pultruded fiberglass (FRP) square ladder rung: outside size 25.4 x 25.4 mm (1 x 1 in); wall thickness 4.76 mm (3/16 in). It is used as the rung of FRP ladders and as an infill rail in handrails. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Anak tangga FRP segi empat 25.4 x 25.4 mm (1 x 1 inci), dinding 4.76 mm, untuk tangga fiberglass, tangga bersangkar dan rel pagar tangan. Tidak berkarat.
Specifications
| Model code | RG-25.4 x 25.4 x 4.76 |
|---|---|
| SKU | RG25 |
| Profile | Square ladder rung |
| Outside size | 25.4 x 25.4 mm (1 x 1 in) |
| Wall thickness | 4.76 mm (3/16 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Rungs for FRP fixed and caged ladders
- Infill rails in handrails
- Small frames and bars
- Rungs near electrical equipment and substations
Choosing This Size
The 1 inch square rung gives a flat top for the foot, which feels surer than a round bar. It fits through holes in the ladder side rails and is bonded or pinned in place.
Frequently Asked Questions
Is the rung gritted for grip?
The surface finish is not stated on this page. Ask us if you need a gritted or grooved rung.
Can you supply the complete ladder?
Yes. We make complete FRP ladders and caged ladders to your height.
What colour is it?
RAL 7035 light grey as standard. Other colours are made on request, subject to quantity.
Can you fabricate it into frames or supports?
Yes. We can cut and fabricate profiles into frames, supports and handrails. Send us a drawing or sketch.
Berapa harga anak tangga FRP RG 25.4 x 25.4 x 4.76?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
Related Sizes and Products
Nearest sizes and related items: RT 38 x 5 round tube →, SR 25 solid rod →, FRP cage ladder →.
See every size in FRP Square Rungs →.
