FRP Handrail System for Platforms and Walkways
FRP fiberglass handrail system for platforms and walkways: 1,100 mm high, 50 mm round tube top and mid rails, 150 mm kick plate, safety yellow. Rust free and non-conductive.
FRP Handrail System for Platforms and Walkways

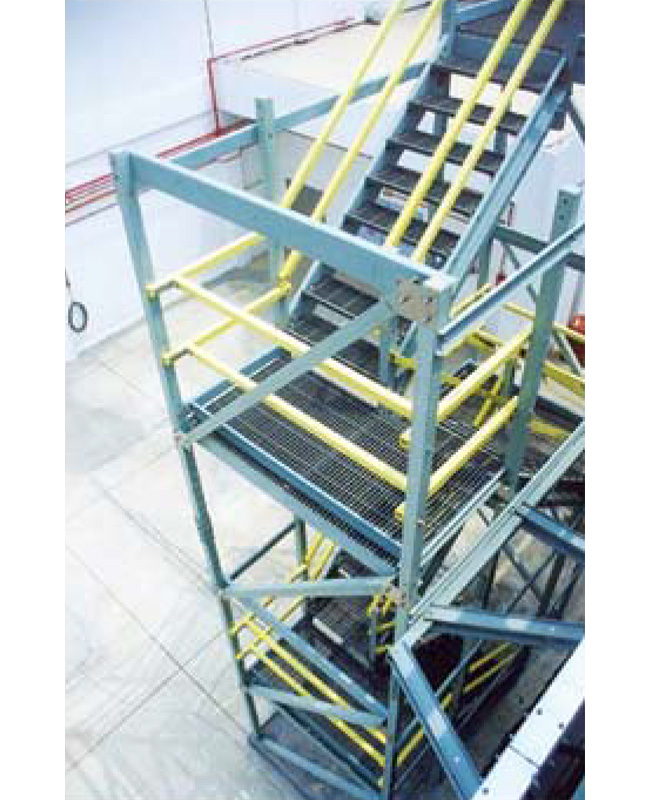

The Mui Fatt FRP handrail system is a fiberglass guardrail for platforms, walkways, tank tops, cooling towers, wastewater plants and chemical areas. It does not rust, does not conduct electricity and needs no painting. Our standard set is 1,100 mm high with a 50 mm FRP round tube top rail and mid rail, a 150 mm kick plate and FRP foot brackets, in safety yellow.
Specifications
| Height | 1,100 mm (standard) |
|---|---|
| Top and mid rail | FRP round tube 50 mm diameter |
| Kick plate | FRP 150 mm high |
| Posts and fixing | FRP posts on FRP foot brackets |
| Fittings | FRP tees and elbows |
| Colour | Safety yellow; grey or other colours on request |
| Supply | Kit cut to your layout; installation and anchor bolts not included |
Material
- Profiles: pultruded FRP with UV inhibitor and surface veil
- Resin: polyester as standard; vinyl ester or fire-retardant (ASTM E84 flame spread 25 or less) on request
- Joints: sealed with epoxy; cut edges sealed with resin
- Fasteners: stainless steel bolts
Why FRP Handrails
- No rust: lasts in wet, salty and chemical areas
- Non-conductive: safer near electrical equipment
- Light: easy to carry and fix on site
- Easy to cut: with normal metal or wood working tools
Related Products
See the FRP staircase safety handrail →, the FRP cage ladder →, MuiGrate FRP grating → for the platform floor, and the FRP kick plate →.
How to Order
Send your platform layout or the running metres of handrail, the post spacing you need and what it fixes to (concrete or steel). We confirm the layout and quote.
Frequently Asked Questions
How high is the standard handrail?
1,100 mm, with a top rail, mid rail and 150 mm kick plate.
Is installation included?
No. We supply the kit cut to your layout; installation and anchor bolts are by others.
Can I get a fire-retardant handrail?
Yes. Fire-retardant resin (ASTM E84 flame spread 25 or less) is available on request.
Ringkasan: Pagar tangan (handrail) FRP untuk platform dan laluan, tinggi 1,100 mm, rel bulat 50 mm, papan kaki 150 mm, warna kuning. Tidak berkarat dan tidak mengalirkan elektrik.
