Heavy Duty FRP Handrail
Heavy duty FRP handrail, 1,300 mm panels 1,375 mm high, with 100 mm square posts, pyramid caps and 76.2 mm and 38 mm round rails. Rust free and made to order for public and coastal areas.
Heavy Duty FRP Handrail
Our heavy duty FRP handrail is a taller, stronger fiberglass railing for public areas, bridges, jetties and plant edges. Our standard design is 1,300 mm long and 1,375 mm high per panel, with 100 x 100 mm FRP square posts with pyramid caps, and 76.2 mm and 38 mm FRP round tube rails. Panels are made to order to suit your site.
Specifications
| Panel length | 1,300 mm |
|---|---|
| Height | 1,375 mm |
| Posts | FRP square hollow 100 x 100 mm with pyramid cap |
| Rails | FRP round tube 76.2 mm and 38 mm |
| Colour | To order |
| Supply | Made to order |
Material
- Profiles: pultruded FRP with UV inhibitor and surface veil
- Resin: polyester as standard; vinyl ester or fire-retardant (ASTM E84 flame spread 25 or less) on request
- Joints: sealed with epoxy; cut edges sealed with resin
- Fasteners: stainless steel bolts
Where It Is Used

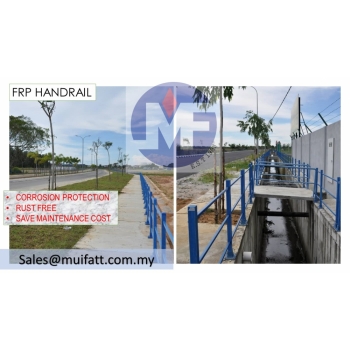

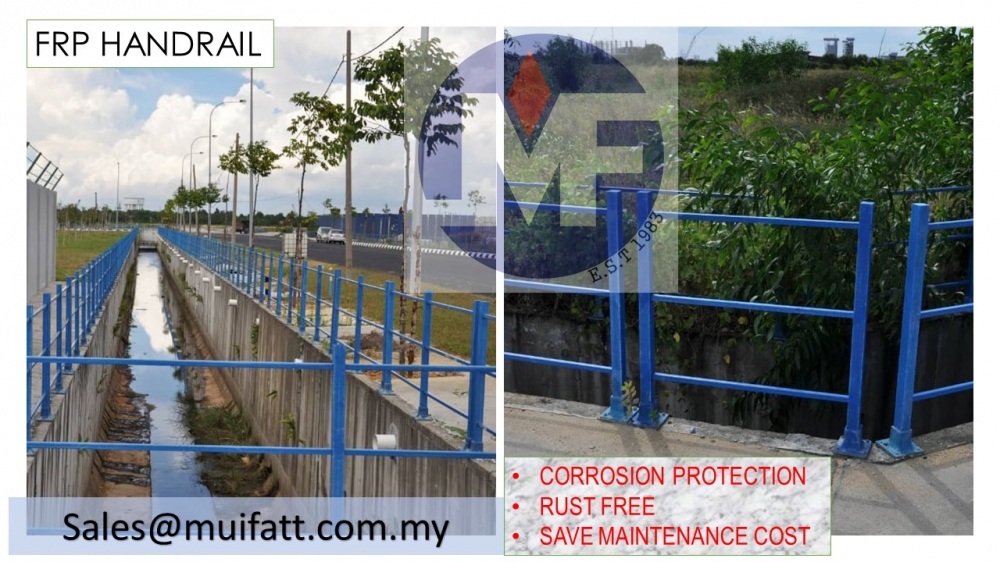

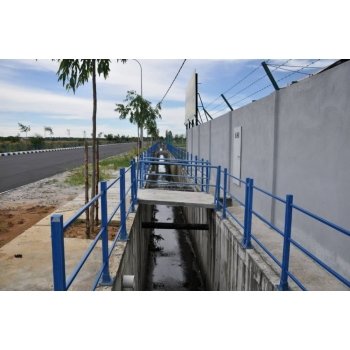

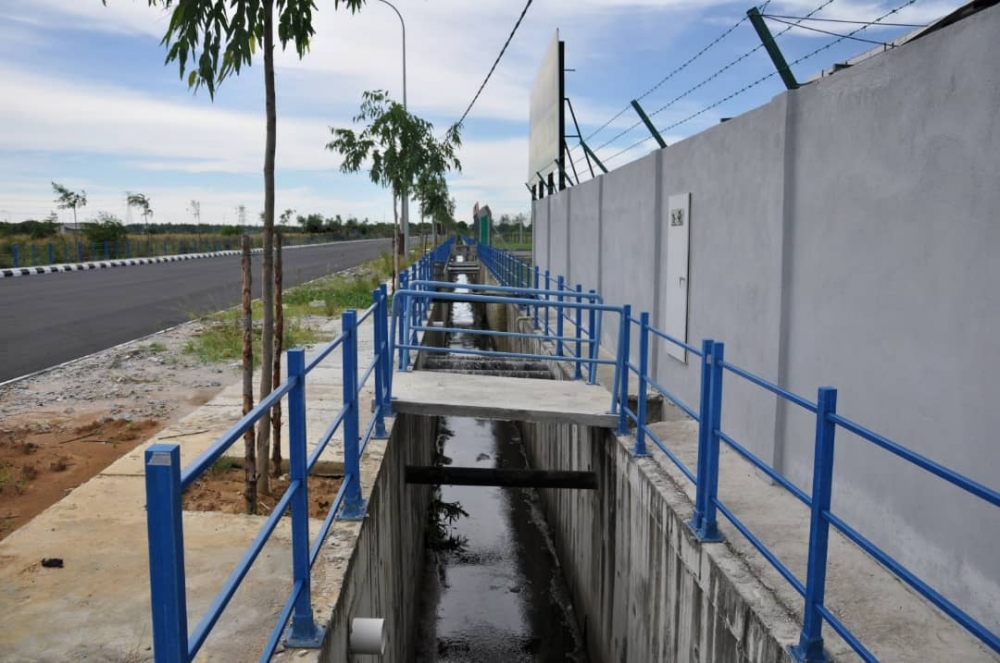

Public walkways, bridges and jetties, riverside and coastal edges, and plant areas that need a heavier rail than a standard platform handrail.
Related Products
See the FRP handrail system →, the wave type FRP handrail → and more OEM fiberglass products →.
Care
FRP handrails need little care. Wash them with water and a mild detergent when they get dirty. There is no paint to chip, so there is no repainting. Check the bolts once a year, as you would on any railing.
How to Order
Send your drawing or the running length, height and fixing details. We can adapt post size, rails and colour to your design.
Frequently Asked Questions
How high is the heavy duty handrail?
1,375 mm in our standard design, with 1,300 mm panels.
Can the design be changed?
Yes. Post size, rails, height and colour can be made to your drawing.
Why FRP instead of steel?
FRP does not rust or need painting, which suits coastal and wet sites.
