MT-220 Mui Tank Open Top Square FRP Water Tank 220 Gallon (1,000 L)
220 gallon (1,000 L) MT-220 one-piece open-top square fiberglass water tank with lid, 1 m long x 1 m wide x 1 m high inside. Made by Y.T. Fibreglass to MS 1241-1:2011, SIRIM certified and SPAN registered.
MT-220 Mui Tank Open Top Square FRP Water Tank 220 Gallon (1,000 L)

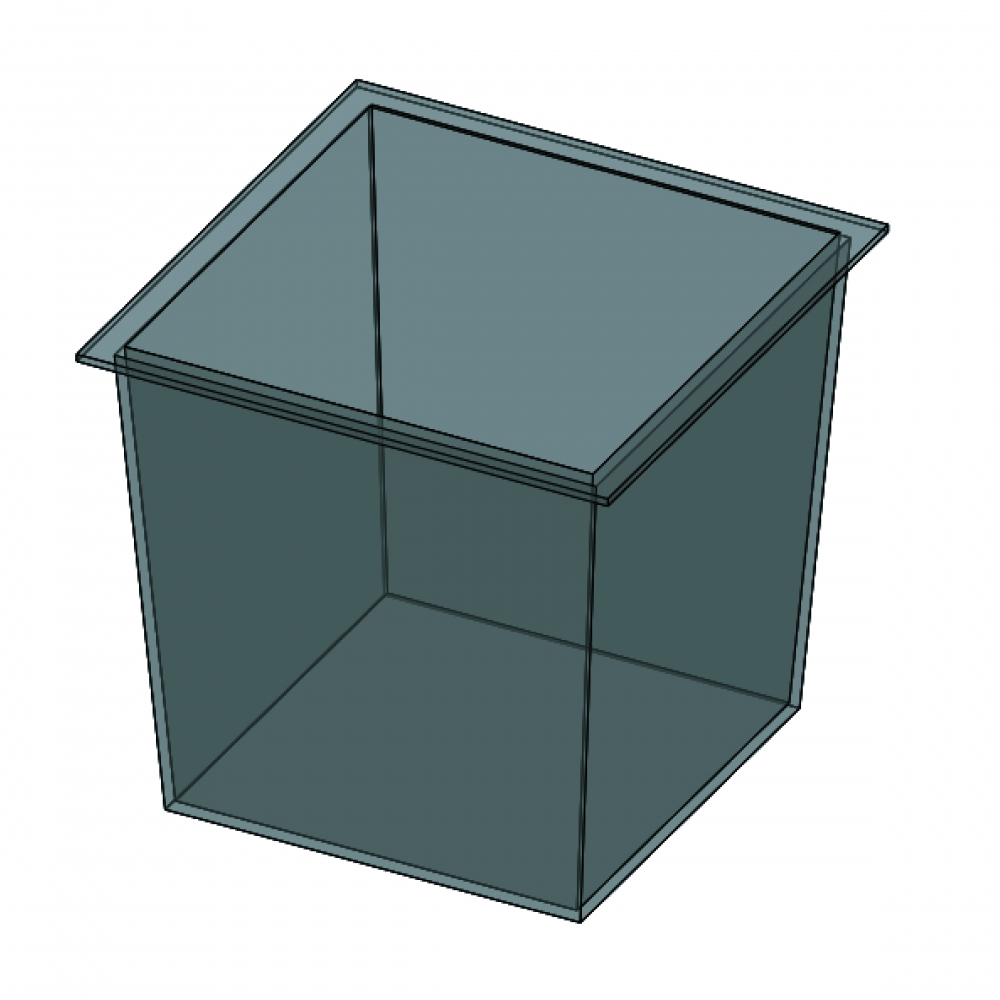

The MT-220 is a one-piece square open-top fiberglass (FRP) water tank with a lid. It holds 220 imperial gallons (1,000 litres) and its internal size is 1 m long x 1 m wide x 1 m high. It is made by Y.T. Fibreglass Industries Sdn Bhd to MS 1241-1:2011, SIRIM certified and registered with SPAN, for cold water storage in houses, shops and buildings.
Ringkasan: Tangki air fiberglass (FRP) Mui Tank MT-220, 220 gelen (1,000 liter), bentuk segi empat sama terbuka dengan penutup. Satu keping tanpa sambungan, mengikut MS 1241-1:2011, diperakui SIRIM dan berdaftar dengan SPAN. Sesuai untuk tangki air rumah, kedai dan bangunan.
Specifications
| Model | MT-220 (SKU FRP-MT-220) |
|---|---|
| Type | Open top, square, with lid |
| Capacity | 220 gal (1,000 L, 1 m³) |
| Internal size (L x W x H) | 1,000 x 1,000 x 1,000 mm |
| Wall thickness | 4 mm |
| Material | Fiberglass reinforced unsaturated polyester (FRP), non-toxic, rust free, UV resistant |
| Construction | One piece, seamless |
| Standard | MS 1241-1:2011, SIRIM certified |
| Water authority | Registered with SPAN |
| Warranty | 8 years outdoor, 10 years indoor (cold water storage) |
| Manufacturer | Y.T. Fibreglass Industries Sdn Bhd |
| Supplier | Mui Fatt Marketing Sdn Bhd (ISO 9001:2015 certified) |
FRP Properties
| Tensile strength | 103 MN/m² (standard minimum 70) |
|---|---|
| Bending strength | 182.4 MN/m² (standard minimum 100) |
| Elastic modulus in bending | 7,906 MN/m² (standard minimum 6,000) |
| Barcol hardness | 50 |
| Water absorption | 0.15% (standard maximum 1.0%) |
Questions About This Tank
What does MT-220 mean?
MT stands for Mui Tank and 220 is the capacity in imperial gallons: the MT-220 holds 220 gallons, or 1,000 litres.
How heavy is it when full?
About 1,000 kg of water when full, plus the tank itself. The support must be flat and level and carry the whole base evenly.
Is it safe for drinking water?
Yes. It is made to MS 1241-1:2011 for cold water storage and SIRIM certified, and registered with SPAN. The FRP is non-toxic and does not rust.
Can it be buried underground?
No. Open-top Mui Tanks are for above-ground use on a flat, level support. Closed-top Mui Tanks can be designed for underground use; ask us.
How should it be installed?
Place it on a flat, level support such as plywood or concrete that carries the whole base. Fit a backing plate outside the tank at the ball valve, use plastic or rubber washers and PTFE tape (no putty or jointing compound), cut pipe holes with a hole saw or sharp punch, support all pipes, and keep the tank away from heaters and lamps.
Berapa harga tangki air fiberglass 220 gelen MT-220?
Harga bergantung kepada saiz, kuantiti, lokasi penghantaran dan aksesori yang diperlukan. Hubungi Mui Fatt untuk sebut harga terkini.
Nearby Square Mui Tank Sizes
For installation, care and how to choose between round, square and closed-top tanks, see the full Fiberglass Mui Tank guide →. Certificates are on our certificate page →
Note on units: All gallons on this page are imperial (UK) gallons. 1 m³ = 1,000 litres = 220 imperial gallons. A US gallon is smaller: 1 m³ is about 264 US gallons.
