TRUGRID FRP Stair Tread System, 280 mm Grating Treads with Nosing
TRUGRID FRP stair treads made from pultruded grating with a 25 or 38 mm deep nosing on the front edge, 280 mm wide, length to order. For plant stairs, offshore ramps and platforms in corrosive areas.
TRUGRID FRP Stair Tread System, 280 mm Grating Treads with Nosing

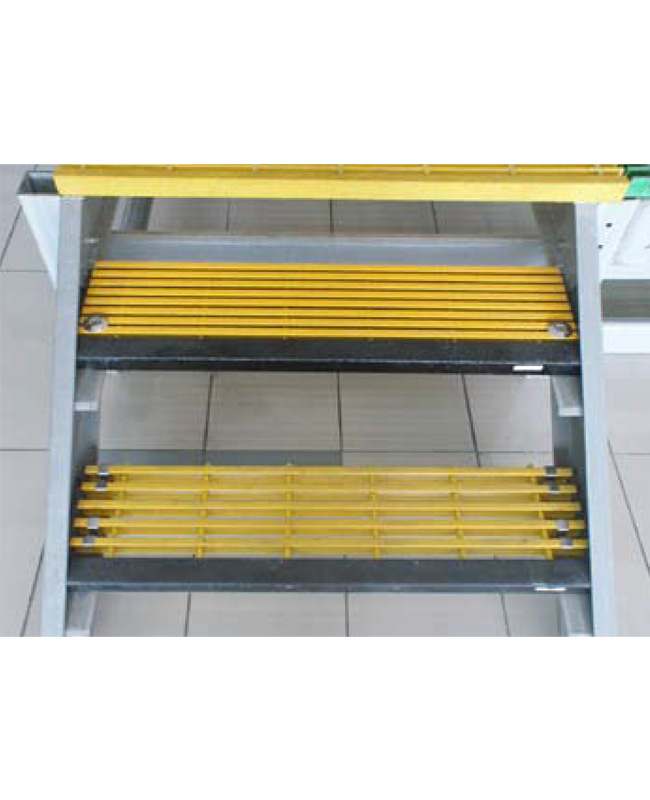

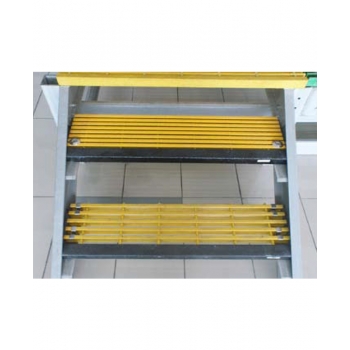

TRUGRID FRP stair treads are cut from pultruded FRP grating and finished with a 25 or 38 mm deep nosing on the leading edge, which stiffens the front of the step where feet strike. The standard tread is 280 mm wide and the length is made to your stair width. They are made by our pultrusion partner Hexagon MF Composite Sdn Bhd for stairs in refineries, offshore access ramps, treatment plants and other corrosive sites.
Ringkasan: Anak tangga FRP TRUGRID daripada jeriji pultrusi dengan nosing 25 atau 38 mm di bahagian depan, lebar 280 mm, panjang mengikut tangga. Tidak berkarat, untuk tangga loji, rampa luar pesisir dan platform.
Specifications
| Tread width | 280 mm standard |
|---|---|
| Tread length | Made to your stair width |
| Nosing | 25 mm or 38 mm deep, to suit the grating depth |
| Grating base | Slim bar 25 or 38 mm (67% open), or TW 25 or 38 mm (40, 50 or 60% open) |
| Tread models | STSL 1.0, STSL 1.5, SHD 1.5, STTW 1.0 and STTW 1.5 |
| Design deflection | L/200 suggested, where L is the tread span |
| Load data | Catalogue load tables for spans 305 to 1,067 mm, on request |
| Resin and colour | Isophthalic (grey), fire-retardant isophthalic (yellow) or vinyl ester (green) |
| Surface | Smooth or gritted anti-slip |
Material and Features
- Material: Pultruded fiberglass reinforced plastic (FRP) grating

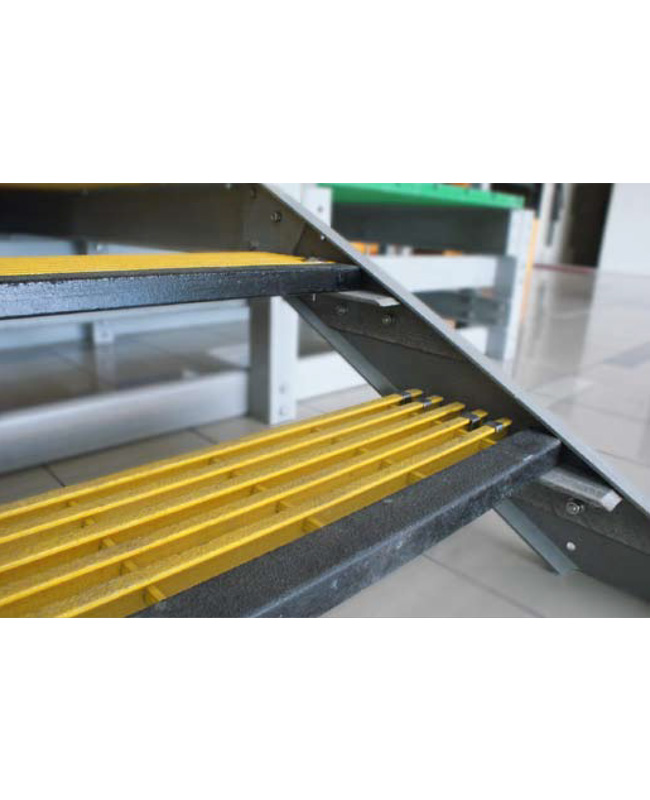

- Stiff front edge: the bonded nosing takes the impact at the front of each step
- Open grating: water, mud and spills drain through the tread
- No rust: lasts in salt air, chemical splash and wet areas
- Light: easy to carry and bolt to stringers
- Matches the platform: same TRUGRID grating as the landing and walkway
Where It Is Used
- Stairs on refinery and chemical plant platforms

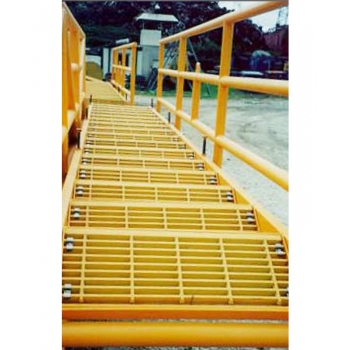

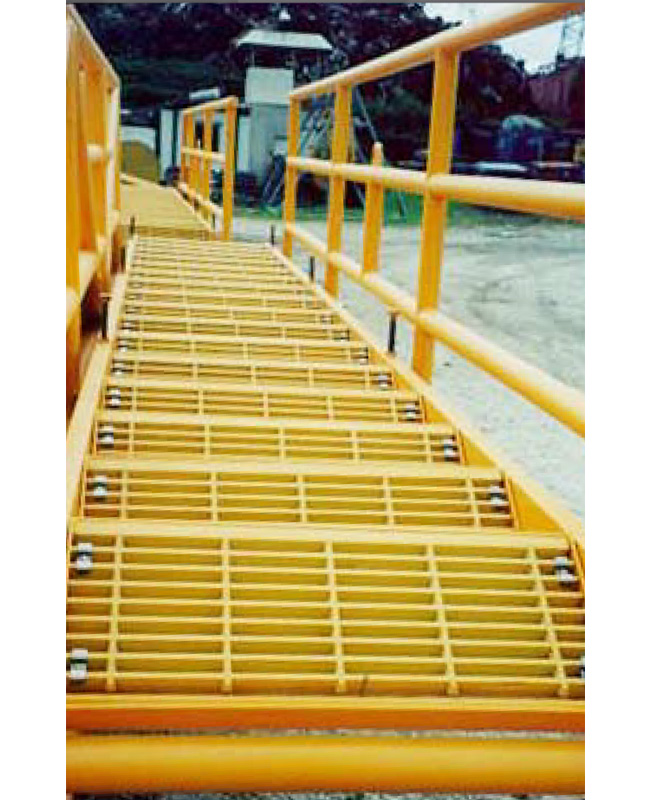

- Offshore and jetty access ramps
- Wastewater and water treatment plant stairs
- Cooling tower and rooftop access stairs
Frequently Asked Questions
How wide is a TRUGRID stair tread?
The standard tread is 280 mm wide. The length is cut to your stair width.
What is the nosing for?
A 25 or 38 mm deep nosing is bonded to the front edge to make it stronger and stiffer where feet land, and to mark the step edge.
How do I choose the tread model?
By the stair width (tread span) and load. We suggest limiting deflection to L/200. Send the span and use and we will pick the model from the catalogue load tables.
Can I get an anti-slip surface?
Yes. A gritted quartz surface bonded with epoxy is available.
Berapa harga anak tangga FRP TRUGRID?
Harga bergantung kepada model, panjang dan kuantiti. Hubungi kami untuk harga terkini.
