MFR3-FRP Biofilter Septic Tank 15 PE (Horizontal, FRP)
MFR3-FRP horizontal FRP biofilter septic tank for 15 PE, 5,100 litres, 1,800 x 2,020 x 1,900 mm. SIRIM MS 2441-1 certified, registered with SPAN, works by gravity with no electricity.
MFR3-FRP Biofilter Septic Tank 15 PE (Horizontal, FRP)
The MFR3-FRP is a horizontal biofilter septic tank for 15 PE (population equivalent; a typical house counts as 5 PE). It holds 5,100 litres (4,700 litres effective) and measures 1,800 mm diameter x 2,020 mm long x 1,900 mm high. It is made in one piece from FRP (fibreglass reinforced polyester) by Y.T. Fibreglass Industries Sdn Bhd, SIRIM certified to MS 2441-1:2012 and registered with SPAN. It treats domestic sewage by gravity to Standard B effluent, with no electricity, pump or blower.
Ringkasan: MFR3-FRP ialah tangki septik biofilter FRP melintang untuk 15 PE, isi padu 5,100 liter, saiz 1,800 x 2,020 x 1,900 mm. Diperakui SIRIM (MS 2441-1:2012) dan berdaftar dengan SPAN, efluen Standard B, tidak memerlukan elektrik. Jaminan 5 tahun.
Specifications
| Model | MFR3-FRP |
|---|---|
| Population equivalent | 15 PE |
| Tank type | Horizontal, one piece |
| Total volume | 5,100 litres (5.1 m³) |
| Effective volume | 4,700 litres |
| Diameter | 1,800 mm |
| Length | 2,020 mm |
| Height (H1) | 1,900 mm |
| Water level (H2) | 1,500 mm |
| Inlet and outlet pipe | 150 mm |
| Material | FRP (fibreglass reinforced polyester) |
| Process | Upflow anaerobic bio-media filter, domestic sewage |
| Effluent | Standard B, Environmental Quality (Sewage) Regulations 2009 |
| Power | None: gravity flow, no pump or blower |
| Desludging | Once every 2 years |
| Standard | MS 2441-1:2012, SIRIM QAS product certification; designed to MS 1228:1991 |
| Water authority | Registered with SPAN; Malaysian Sewerage Industry Guidelines Vol. 5 (Septic Tanks) |
| Site conditions | Coastal and high water table areas |
| Warranty | 5 years against manufacturing defects |
| Manufacturer | Y.T. Fibreglass Industries Sdn Bhd |
How It Works
Solids settle and break down in the first chamber. The liquid then rises through plastic bio-media, where bacteria remove fine and dissolved matter, and leaves through the 150 mm outlet by gravity. The up-flow filter does not clog.
Why Choose the MFR3-FRP
- Strong and rigid: FRP has high flexural strength for harsh ground.
- Leakproof and rust-free: resists rust and most chemicals found in soil and sewage.
- No running cost: no moving parts, no pump and no power bill.
- Easy desludging: separate access to the settling zone and a large outlet.
- Low profile: at 1,900 mm high it needs a shallower pit, which helps on hard ground or a high water table.
Where It Is Used
Terrace and bungalow houses, shop houses, light industrial factories, warehouses, site offices and other buildings not connected to a public sewer.
Installation and Submission
Mui Fatt supplies the tank; your contractor installs it on a reinforced concrete base with stainless steel anchor straps, as shown in the installation manual. We help with the IWK and SPAN paperwork and give free submission drawings: see our sewerage submission service →.
Frequently Asked Questions
How many people can the MFR3-FRP serve?
It is sized for 15 PE. A house counts as 5 PE, a factory worker as 0.3 PE and an office as 0.03 PE per m² of floor area. Add these up and choose a tank at or above the total. Need help counting? Use our PE calculation service →.
Is the MFR3-FRP registered with SPAN and accepted by IWK?
Yes. It is SIRIM certified to MS 2441-1:2012 and registered with SPAN, and it follows the Malaysian Sewerage Industry Guidelines Vol. 5 used for IWK submissions. Certificates are available on request.
Does it need electricity?
No. Sewage settles, then rises through the bio-media filter by gravity. There is no pump, blower or control panel.
How often must it be desludged?
Once every 2 years, by IWK or a licensed desludging contractor. Fill the tank with water to full capacity after each desludging.
Berapa harga tangki septik MFR3-FRP?
Harga bergantung kepada kuantiti dan lokasi penghantaran. Hubungi Mui Fatt untuk sebut harga terkini.
Other Sizes

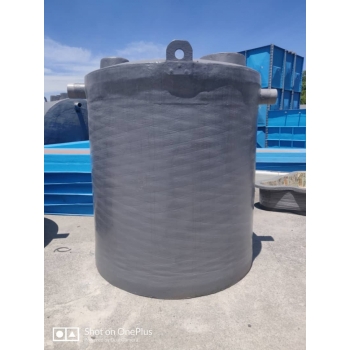

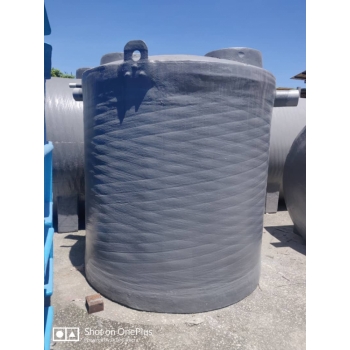

Nearest sizes: MF3-FRP, 15 PE vertical → | MF20-FRP, 20 PE vertical →.
Also compare: MF3-FRP, same 15 PE in vertical shape → | MF3-PE, 15 PE in PE →.

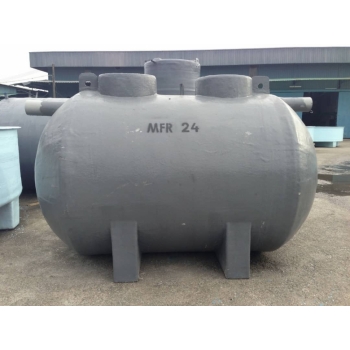

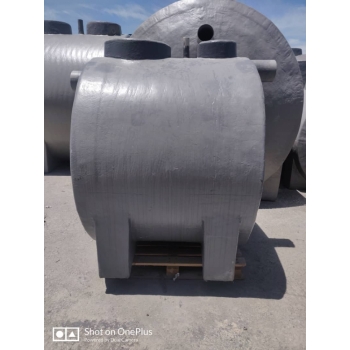

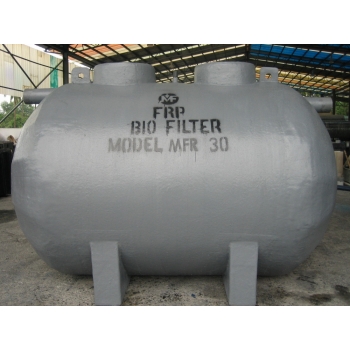

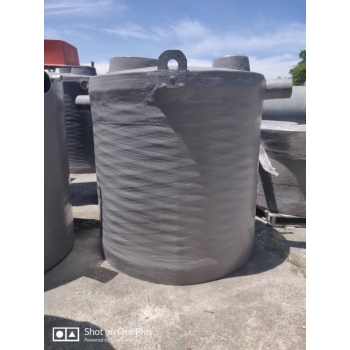

See all models in the FRP Biofilter Septic Tanks 8 to 30 PE → or the full Individual Septic Tanks (IST) 6 to 30 PE →. Size your site with the free septic tank selection guide →. Over 30 PE? See the Small Sewage Treatment System 40 to 150 PE →.
