FRP Angle Bar AB 76.2 x 76.2 x 6.35 mm (3 x 3 in)
Pultruded FRP equal angle, 76.2 x 76.2 mm (3 x 3 in), 6.35 mm thick. A mid-size angle for frames, bracing, base connections and grating supports. Rust free, non-conductive, RAL 7035 grey.
FRP Angle Bar AB 76.2 x 76.2 x 6.35 mm (3 x 3 in)

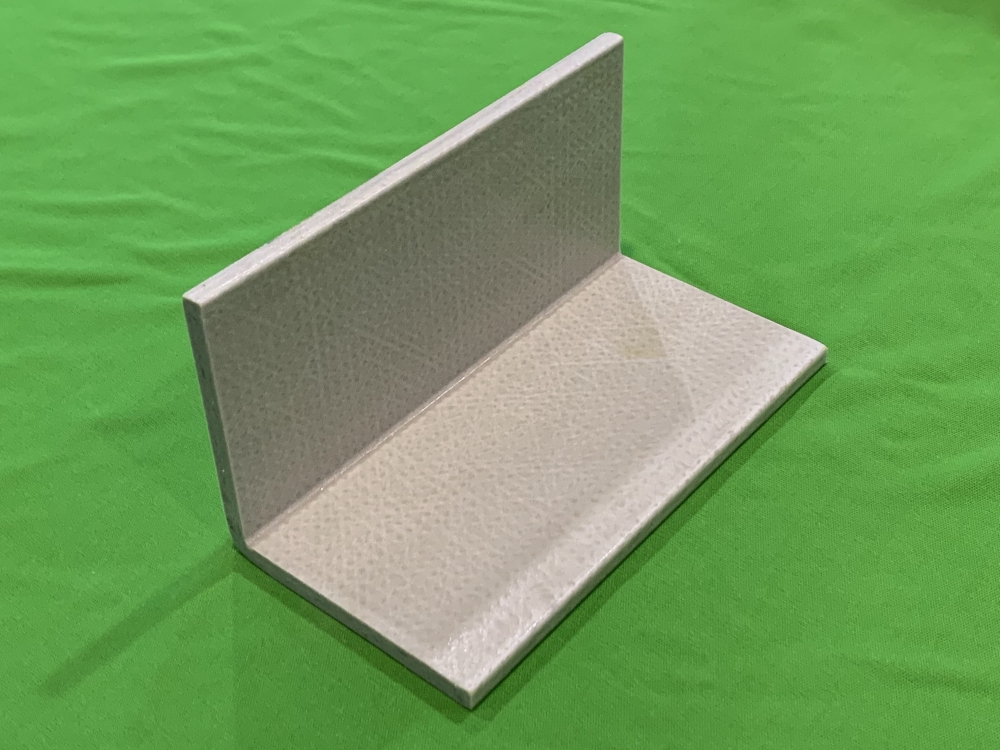

The AB 76.2 x 76.2 x 6.35 is a pultruded fiberglass (FRP) equal angle bar: leg size 76.2 x 76.2 mm (3 x 3 in), equal legs; thickness 6.35 mm (1/4 in). It is the mid-size angle, with longer legs for two-bolt connections and frame members. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Bar sudut FRP 76.2 x 76.2 mm (3 x 3 inci), tebal 6.35 mm, untuk rangka, pendakap dan sambungan tapak. Ringan dan tidak berkarat.
Specifications
| Model code | AB - 76.2 x 76.2 x 6.35 |
|---|---|
| SKU | AB3 |
| Profile | Equal angle bar |
| Leg size | 76.2 x 76.2 mm (3 x 3 in), equal legs |
| Thickness | 6.35 mm (1/4 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Beam-to-column connection cleats
- Column base angles
- Frames for platforms, tanks and covers
- Diagonal bracing
- Grating and cover support ledges with wider bearing
Choosing This Size
The longer 3 inch legs leave room for larger bolts or two bolts side by side, so this angle is used for column base connections, beam-to-column cleats and as a frame member in its own right.
Frequently Asked Questions
Why choose 3 x 3 in instead of 2 x 2 in?
The longer legs give more bearing for grating and more room for bolts, so it suits heavier joints and frame members.
Can FRP angles be bolted to concrete?
Yes, with stainless steel anchors. Drill the holes and seal cut edges with resin.
Why use FRP instead of steel?
FRP is much lighter than steel, does not rust, does not conduct electricity and resists many chemicals and salt air, so it needs little maintenance in wet or corrosive sites.
What colour is it?
RAL 7035 light grey as standard. Other colours are made on request, subject to quantity.
Berapa harga bar sudut FRP AB 76.2 x 76.2 x 6.35?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
