FRP Angle Bar AB 101.6 x 101.6 x 6.35 mm (4 x 4 in)
Pultruded FRP equal angle, 101.6 x 101.6 mm (4 x 4 in), 6.35 mm thick. Our largest listed angle, for main frames, heavy cleats and wide support ledges. Rust free, non-conductive, RAL 7035 grey.
FRP Angle Bar AB 101.6 x 101.6 x 6.35 mm (4 x 4 in)

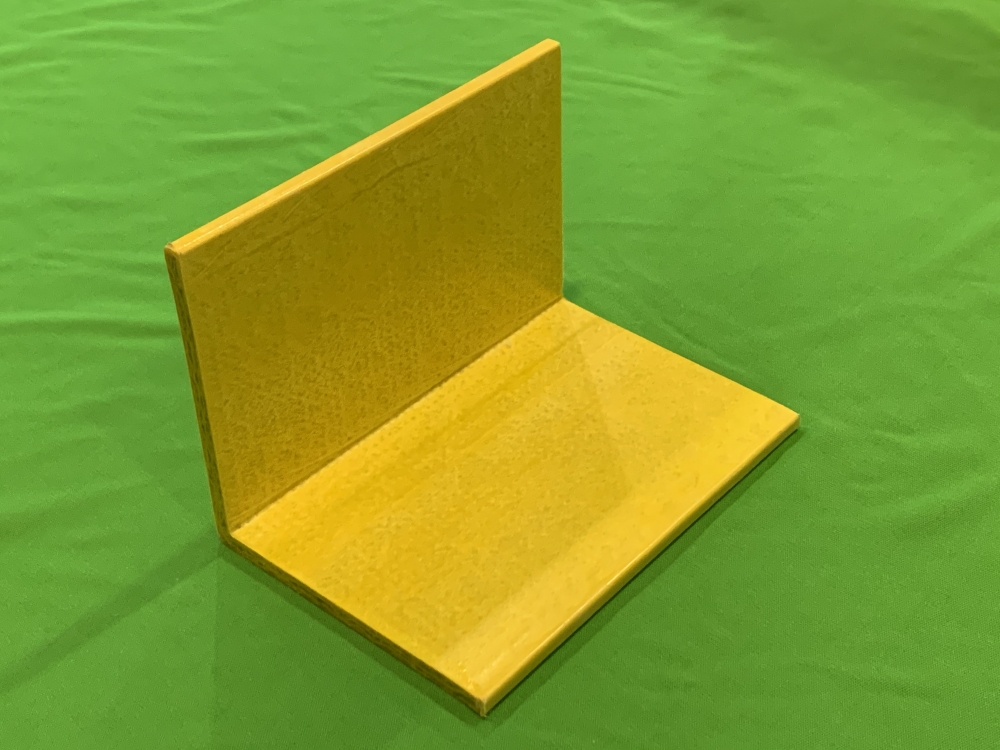

The AB 101.6 x 101.6 x 6.35 is a pultruded fiberglass (FRP) equal angle bar: leg size 101.6 x 101.6 mm (4 x 4 in), equal legs; thickness 6.35 mm (1/4 in). It is the largest of our three equal angles, for main frames and heavy connections. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Bar sudut FRP 101.6 x 101.6 mm (4 x 4 inci), tebal 6.35 mm, saiz terbesar, untuk rangka utama dan penyambung berat. Tidak berkarat.
Specifications
| Model code | AB - 101.6 x 101.6 x 6.35 |
|---|---|
| SKU | AB4 |
| Profile | Equal angle bar |
| Leg size | 101.6 x 101.6 mm (4 x 4 in), equal legs |
| Thickness | 6.35 mm (1/4 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Cleats for C-channel and I-beam connections
- Edge frames around large pits and openings
- Main frames for covers and hatches
- Bracing on cooling towers and platforms
- Wide ledges for grating panels
Choosing This Size
The 4 inch angle is used where a joint needs a wide connection face, for example between C-channels or I-beams, or where an angle works as a main frame or edge member on a large opening.
Frequently Asked Questions
Is 4 x 4 in the largest FRP angle you supply?
It is the largest of the three angles we list. Other sizes may be possible; tell us what you need.
Is the 4 x 4 in angle thicker than the smaller ones?
No. All three listed angles are 6.35 mm (1/4 in) thick; only the leg length changes.
What colour is it?
RAL 7035 light grey as standard. Other colours are made on request, subject to quantity.
Can you fabricate it into frames or supports?
Yes. We can cut and fabricate profiles into frames, supports and handrails. Send us a drawing or sketch.
Berapa harga bar sudut FRP AB 101.6 x 101.6 x 6.35?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
