FRP Angle Bar AB 50.8 x 50.8 x 6.35 mm (2 x 2 in)

Pultruded FRP equal angle, 50.8 x 50.8 mm (2 x 2 in), 6.35 mm thick. The smallest angle we list, for brackets, cleats, grating ledges and light bracing. Rust free, RAL 7035 grey.

SKU :

AB2

FRP Angle Bar AB 50.8 x 50.8 x 6.35 mm (2 x 2 in)

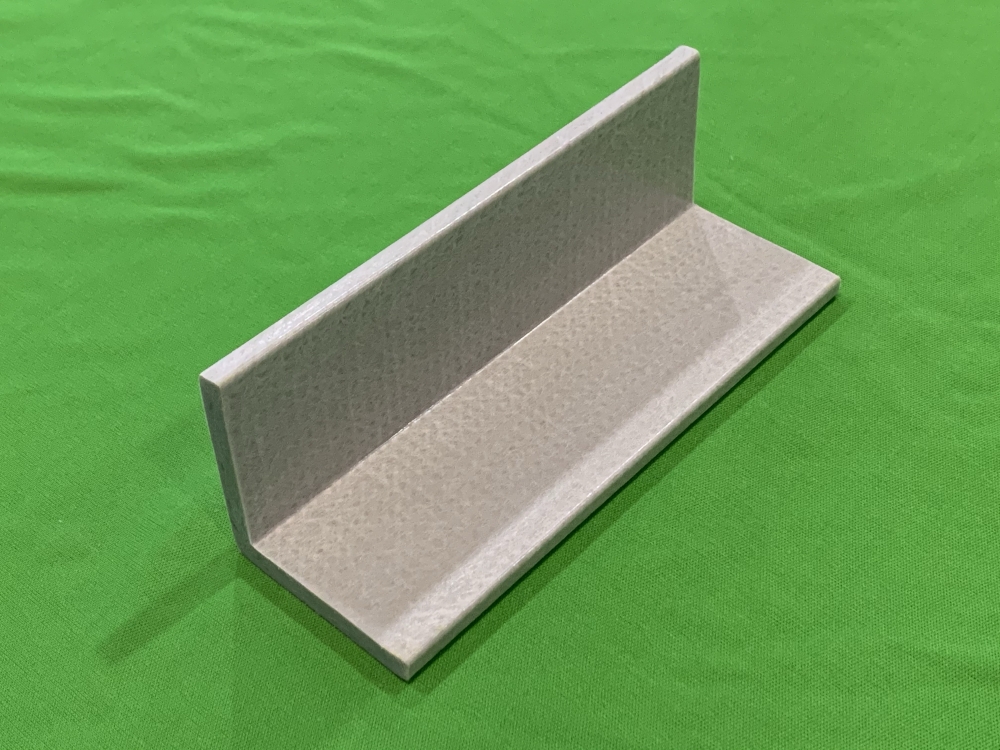

The AB 50.8 x 50.8 x 6.35 is a pultruded fiberglass (FRP) equal angle bar: leg size 50.8 x 50.8 mm (2 x 2 in), equal legs; thickness 6.35 mm (1/4 in). It is the smallest of our three equal angles and is used for brackets, cleats and grating ledges. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.

Ringkasan: Bar sudut FRP 50.8 x 50.8 mm (2 x 2 inci), tebal 6.35 mm, untuk pendakap, klip penyambung dan tebing jeriji. Tidak berkarat.

Specifications

Model code	AB - 50.8 x 50.8 x 6.35
SKU	AB2
Profile	Equal angle bar
Leg size	50.8 x 50.8 mm (2 x 2 in), equal legs
Thickness	6.35 mm (1/4 in)
Standard length	TBA (cut to length on request)
Weight per metre	TBA
Process	Pultrusion: E-glass rovings and mat with a surface veil
Resin	Isophthalic polyester (standard); vinyl ester on request
Fire-retardant option	Fire-retardant resin to ASTM E84 on request
Colour	RAL 7035 light grey; other colours on request
Made by	Hexagon MF Composite Sdn Bhd, Malaysia
Supplied by	Mui Fatt

Material and Features

Rust free: does not corrode in water, salt air or most chemicals
Non-conductive: does not conduct electricity, safer near cables and electrical plant
Light: much lighter than steel, so it is easy to carry and fit by hand
Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
Easy to work: cut and drilled with standard power tools; seal cut edges with resin

Where It Is Used

Connection cleats between tubes and channels
Ledges to support FRP grating and covers
Light bracing and stiffeners
Edge trims on platforms and pits
Brackets for cable and pipe supports

Choosing This Size

The 2 inch angle is the usual choice for connection cleats between FRP tubes and channels, for grating support ledges along trenches and pits, and for light bracing. Its 6.35 mm leg leaves enough material around a bolt hole for most joints.

Frequently Asked Questions

Can this angle hold FRP grating?

Yes. 2 x 2 in FRP angles are often fixed along the edges of pits and trenches as a ledge for FRP grating. Spacing of fixings depends on the load.

Is the angle equal or unequal?

Equal. Both legs are 50.8 mm and the thickness is 6.35 mm.

Is a fire-retardant version available?

Yes. Profiles in fire-retardant resin to ASTM E84 are made on request. Vinyl ester resin is also available on request for stronger chemicals.

Why use FRP instead of steel?

FRP is much lighter than steel, does not rust, does not conduct electricity and resists many chemicals and salt air, so it needs little maintenance in wet or corrosive sites.
