FRP Baffle Panel for Wastewater Tanks, 12 or 24 in Wide, 3 or 6 m
Hand-laid fibreglass (FRP) baffle panels for flow control in water and wastewater treatment: 24 or 12 inches wide, 2 inches high, in 3 m or 6 m lengths. Fixed to concrete walls with clip angles.
FRP Baffle Panel for Wastewater Tanks, 12 or 24 in Wide, 3 or 6 m

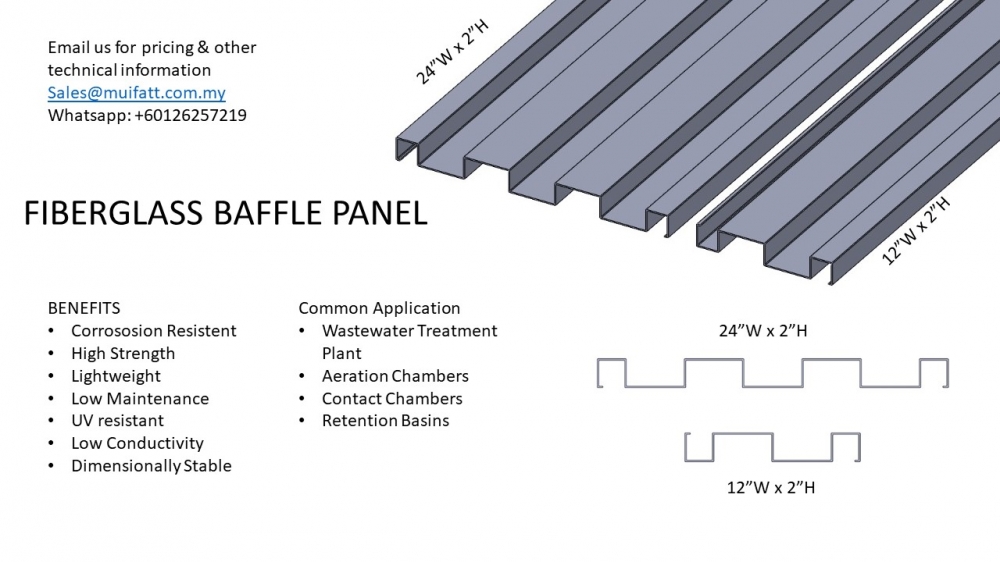

FRP baffle panels guide and control the flow of water in treatment tanks. They are hand-laid fibreglass panels, 24 or 12 inches wide and 2 inches high, supplied in 3 m or 6 m lengths, and they fix to concrete walls and H-beams with clip angles. Wood baffles rot and steel or concrete corrode in wastewater; FRP does not, so the baffles last longer and need little maintenance.
Ringkasan: Panel sesekat FRP buatan tangan untuk kawalan aliran dalam tangki rawatan air dan air sisa, lebar 24 atau 12 inci, tinggi 2 inci, panjang 3 m atau 6 m. Dipasang pada dinding konkrit dengan sudut klip.
Specifications
| Product | FRP baffle panel |
|---|---|
| Size A | 24 in wide x 2 in high |
| Size B | 12 in wide x 2 in high |
| Length | 3 m or 6 m per panel |
| Process | Hand lay-up |
| Fixing | Clip angles to concrete walls or H-beams |
| Manufacturer | Y.T. Fibreglass Industries Sdn Bhd |
Material and Features
- Corrosion resistant: no rust or rot in wastewater
- Strong and light: easy to lift into place in a tank
- UV resistant: for open-top tanks
- Low conductivity: non-metallic
- Dimensionally stable: keeps its shape in service
Where It Is Used
- Municipal water and wastewater plants
- Aeration chambers
- Chlorine contact chambers
- Retention basins and clarifiers
New or Upgrade
The panels suit new tanks and upgrades of existing tanks where old timber or steel baffles have failed. Send the tank drawing and baffle layout for a quote.
Frequently Asked Questions
What sizes are available?
24 in or 12 in wide, 2 in high, in 3 m or 6 m lengths.
How are the panels fixed?
With clip angles to concrete walls or H-beams.
Why FRP instead of timber or steel?
Timber rots and steel corrodes in wastewater. FRP does neither, so it lasts longer.
Where are baffle panels used?
Aeration chambers, contact chambers, retention basins and other water and wastewater tanks.
Berapa harga panel sesekat FRP?
Harga bergantung kepada saiz dan kuantiti. Hubungi kami untuk harga terkini.
