BM 150-200 A Special Size BUMI Round Open Top PE Water Tank 200 Gallon (908 L)
200 gallon (908 L) BUMI round open-top PE water tank, 1,390 mm top diameter, 790 mm high with cover. Rotomoulded from food-grade LLDPE by Mui Fatt Industries, SIRIM certified to MS 1225-1:2014 and registered with SPAN.
BM 150-200 A Special Size BUMI Round Open Top PE Water Tank 200 Gallon (908 L)

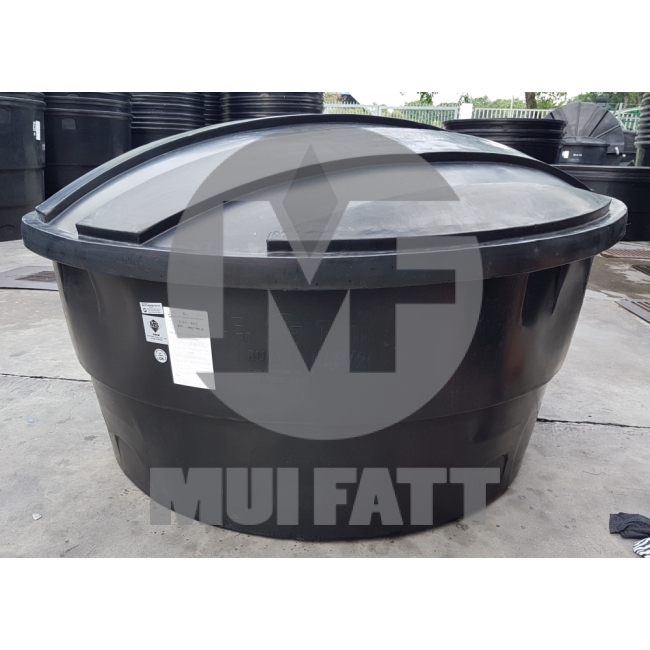

The BM 150-200 A is a round open-top polyethylene water tank that holds 200 imperial gallons (908 litres) nominal and 150 gallons (681 litres) effective. It measures 1,390 mm across the cover and 790 mm high with the cover on. It is rotationally moulded in one piece from food-grade LLDPE by Mui Fatt Industries Sdn Bhd, SIRIM QAS certified to MS 1225-1:2014 and registered with SPAN. It is a special size: the same capacity as the standard BM 150-200, in a different shape, for spaces where a standard tank does not fit.
Ringkasan: Tangki air PE (poly tank) BM 150-200 A, 200 gelen (908 liter), bentuk bulat dengan penutup (siri BUMI). Diperbuat daripada LLDPE gred makanan, diperakui SIRIM (MS 1225-1:2014) dan berdaftar dengan SPAN. Sesuai untuk tangki air rumah, kedai dan pejabat.

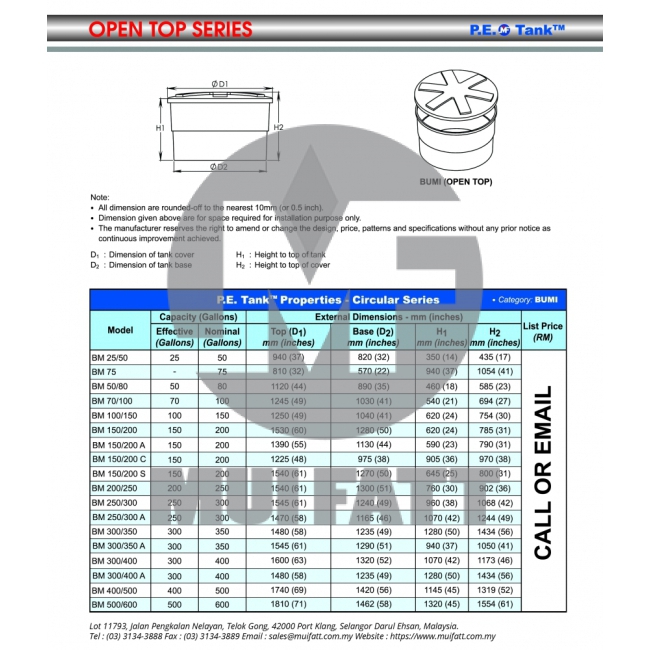

Specifications
| Model | BM 150-200 A (SKU PE-BM-150-200-A) |
|---|---|
| Series | BUMI, round, open top |
| Capacity | 200 gal (908 L) nominal; 150 gal (681 L) effective |
| Top diameter (D1) | 1,390 mm |
| Base diameter (D2) | 1,130 mm |
| Height to top of tank (H1) | 590 mm |
| Height to top of cover (H2) | 790 mm |
| Material | 100% virgin food-grade LLDPE, UV-stabilised |
| Process | One-piece rotational moulding |
| Standard | MS 1225-1:2014, SIRIM QAS certified |
| Water authority | Registered with SPAN |
| Warranty | 8 years outdoor, 10 years indoor |
| Manufacturer | Mui Fatt Industries Sdn Bhd |
| Supplier | Mui Fatt Marketing Sdn Bhd (ISO 9001:2015 certified) |
Polyethylene Properties
| Density | 938 kg/m³ |
|---|---|
| Tensile strength | 16 MPa |
| Elongation | More than 200% |
| Flexural modulus | 650 MPa |
| Hardness (Shore D) | 62 |
| Softening point | 117 °C |
Questions About This Tank
How is the BM 150-200 A different from the BM 150-200?
It holds the same 200 gallons as the standard BM 150-200, but in a different shape: 1,390 mm across the top and 790 mm high. Choose it when the standard tank does not fit your space.
How heavy is it when full?
About 908 kg of water at nominal capacity, plus the tank itself. The base must be flat and support the whole bottom of the tank evenly.
Is it safe for drinking water?
Yes. It is made from food-grade LLDPE and SIRIM QAS certified to MS 1225-1:2014 for cold water storage, and registered with SPAN.
Berapa harga tangki air 200 gelen BM 150-200 A?
Harga bergantung kepada kuantiti, lokasi penghantaran dan aksesori yang diperlukan. Hubungi Mui Fatt untuk sebut harga terkini.
How should it be installed?
Place it on a level base that supports the whole bottom, join pipes with flexible couplings, keep it away from heaters and other heat sources, and always fit the cover.
Nearby BUMI Sizes
- BM 100-150, 150 gallon (681 L) →
- BM 150-200, 200 gallon (908 L) →
- BM 200-250, 250 gallon (1,135 L) →
For installation, care and how to choose a size, see the full PE water tank guide →. Certificates are on our certificate page →
Note on units: All gallons on this page are imperial (UK) gallons. 1 m³ = 1,000 litres = 220 imperial gallons. A US gallon is smaller: 1 m³ is about 264 US gallons.
Want to know more about this range? Our free water tank selection guide shows every PE and fiberglass tank at a glance, in seconds, with no details needed: Open the water tank selection guide →
Contact Mui Fatt for a quotation: Get a Quote →
