FRP Double Containment Tank

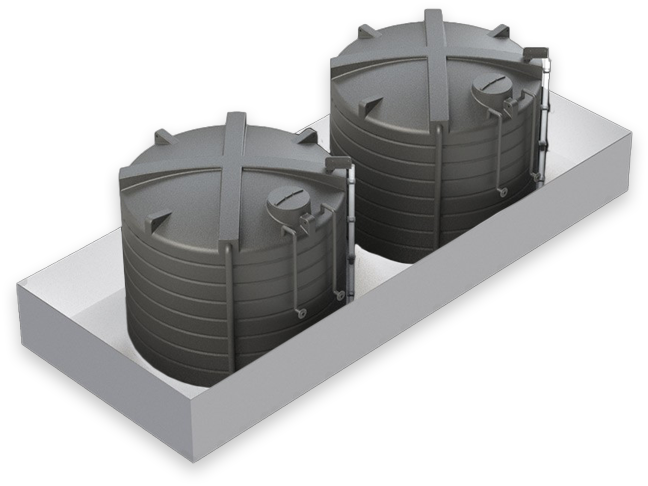

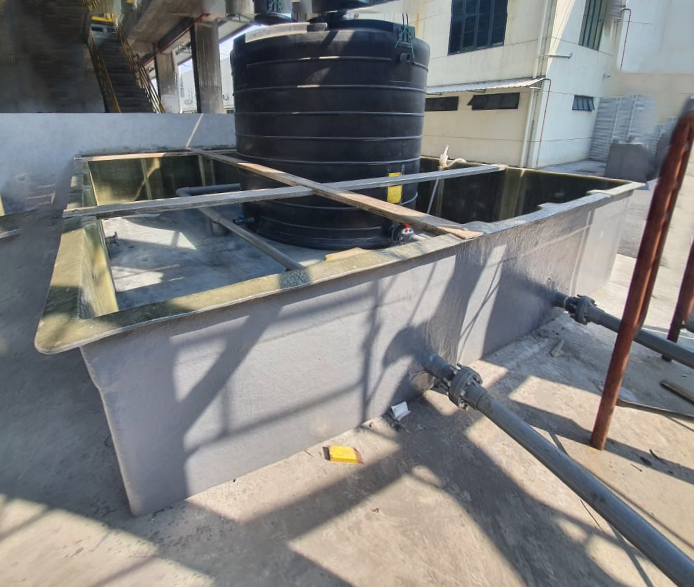

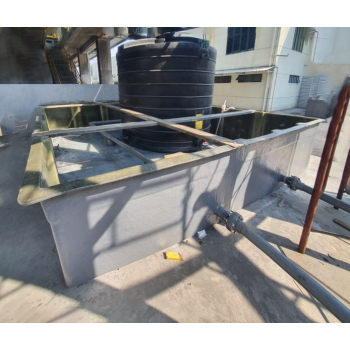

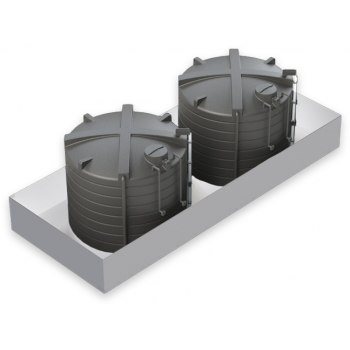

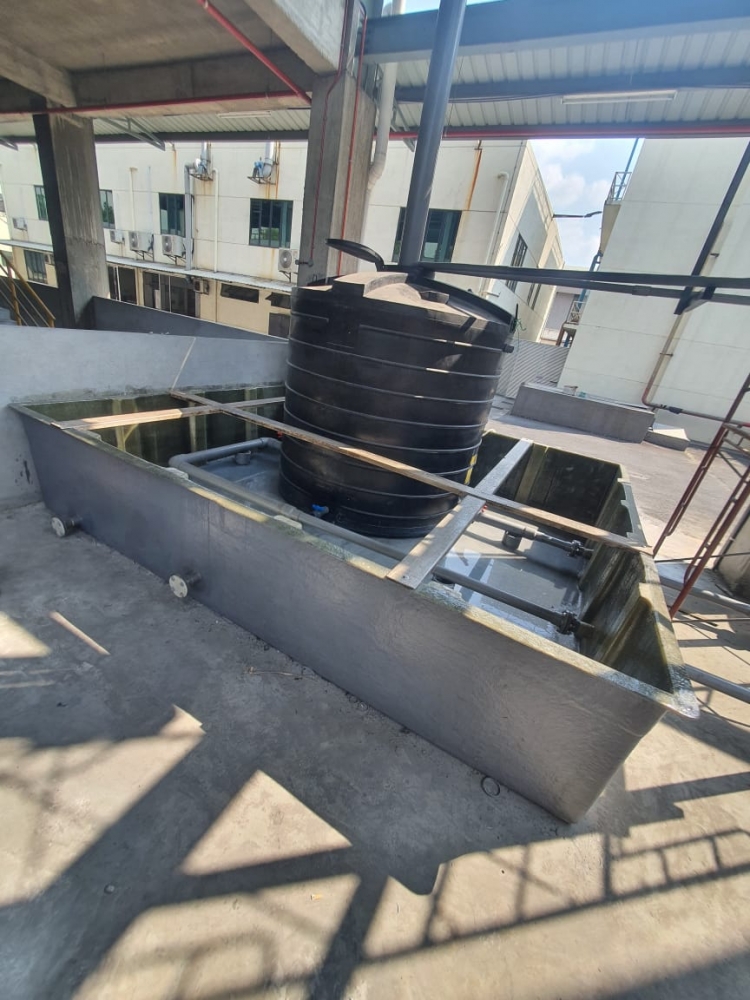

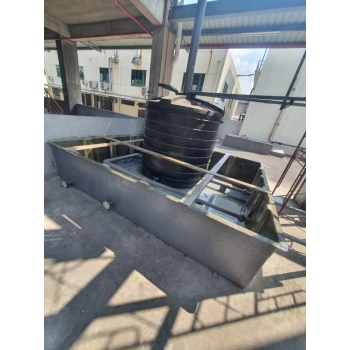

Our FRP double containment tank is a fiberglass spill tray designed to sit under a hazardous chemical storage tank. If the tank leaks or overflows, the tray holds the spill so it does not reach the floor, drains or soil. The standard unit is 1,000 x 1,000 mm and 150 mm deep with a 50 mm flange, hand laid in Malaysia with a 4 to 5 mm wall. Sizes, resin and fittings are made to suit your site. Mui Fatt has supplied these units to industrial projects in Malaysia.
Specifications
| Standard size | 1,000 mm x 1,000 mm x 150 mm (H), with 50 mm flange |
|---|---|
| Gross volume | about 150 litres (standard size) |
| Wall thickness | 4 to 5 mm |
| Method | Hand lay-up |
| Resin | Orthophthalic or isophthalic polyester; vinyl ester for strong chemicals |
| Colour | Grey; other colours on request |
| Use | Spill tray under hazardous chemical storage tanks |
| Installation | Not included |
| Made in | Malaysia |
Why FRP for Containment
- Chemical resistant: resin chosen to suit the chemical you store
- No rust: unlike steel bunds and trays
- Light: easy to place and move
- Made to size: capacity, height and access points to fit your space
Choosing the Resin
Tell us the chemicals, their strength and temperature. General purpose polyester suits mild chemicals; vinyl ester is used for stronger acids and alkalis. We confirm the resin before production.
Related Products
For storage tanks, see our FRP chemical and wastewater treatment tanks →. More custom parts are in OEM fiberglass products →.
How to Order
Send the size or capacity you need, the chemical stored and any fittings such as a drain point.
Frequently Asked Questions
What is it used for?

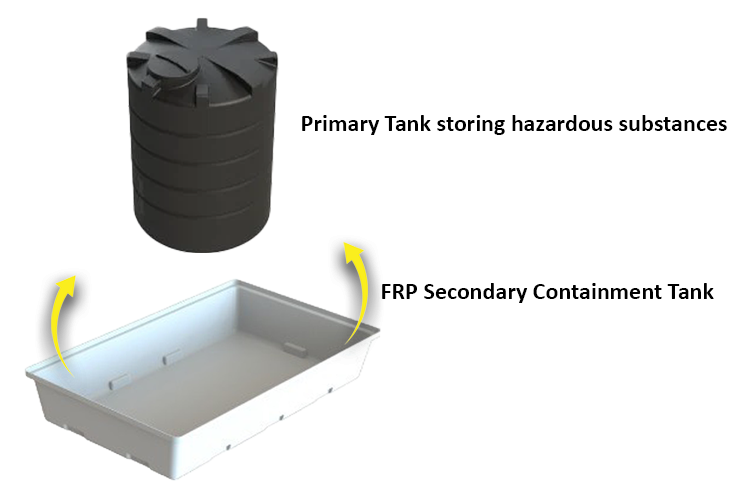

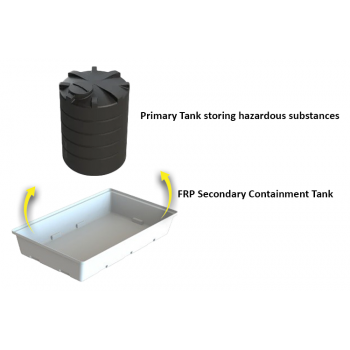

It sits under a hazardous chemical storage tank and holds any leak or overflow.
What size is the standard unit?
1,000 x 1,000 mm and 150 mm deep with a 50 mm flange, about 150 litres gross.
Can you make other sizes?
Yes. Capacity, height and fittings are made to suit your site.
Is installation included?
No. We supply the unit; installation is by others.
