MG 25-38 Cut-to-Size 4ft x 8ft (Square)

Fiberglass Molded Grating is an alternate option for Steel Grating with its lightweight, rust free and corrosion free characteristic. It can prevent theft issue that is common for Steel Grating too.
Suitable for off shore or near to sea application.

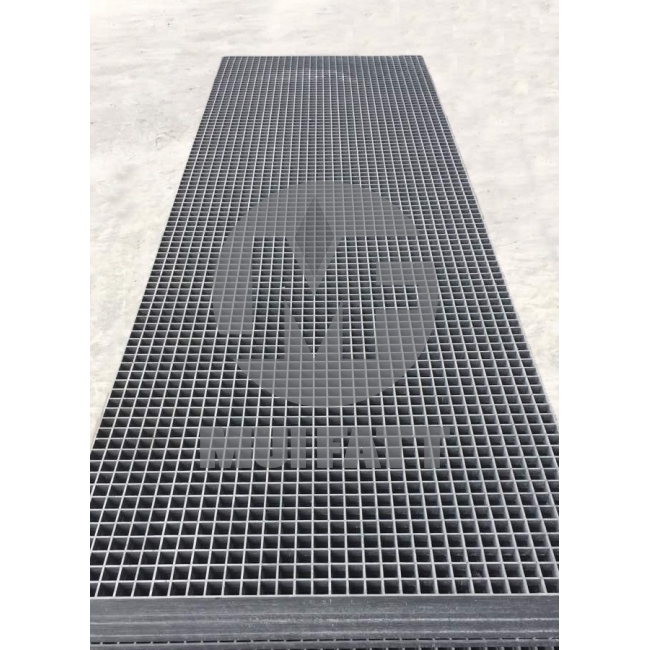

MG25-38 Cut-to-Size 4ft x 8ft (Grey/Grating Only)

SIRIM Certificate is available for this product, you may have it download from the below.

SKU :
MG25-38 4ft x 8ft Cut-to-Size (Square)
Quantity :
Loading ...
PDF download :
MG 25-38 Cut-to-Size 4ft x 8ft (Square)

Product : Fiberglass Molded Grating
Model : MG 25-38 (Square)
Standard Panel : 4ft x 8ft or 1220mm x 2440mm
Mesh Size : 38mm x 38mm
Grating Height : 25mm
Color : Grey, Yellow, Green and other option are available
Resin : Orthophatalic, Isophatlic & Vinyl Ester (VE)
Application : Oil & Gas Platform, Construction, Electrical, Poultry & Agricultural
Features : rust free, chemical resistance, non-conductive
Fire retardant : Optional, please email for more details

  • Made in Malaysia
  • Cut To Size option available
  • Product Chemical Resistant Chart available upon enquiry

Remarks - Molded Grating MG25-38 are proof tested in house for up to 7.5kN (General Duty for pedestrian traffic) and deflection less than 10mm according to BS4592 Part 6

Please feel free to contact us for installation and usage details.


Produk : Grating Beracuan Gentian Kaca
Model : MG 25-38 (Square)
Panel Standard : 4ft x 8ft or 1220mm x 2440mm
Saiz Jaringan : 38mm x 38mm
Ketinggian Grating : 25mm
Warna : Kelabu, Kuning, Hijau dan pilihan lain
Resin : Ortopatalik, Isofatlik & Vinyl Ester (VE)
Applikasi : Platform Minyak & Gas, Pembinaan, Sektor Elektrik, Penternakan Ayam dan Pertanian
Ciri-ciri : bebas karat, rintangan kimia, tidak konduktif
Kalis Api : Sila e-mel untuk mendapatkan butiran lanjut

  • Buatan Malaysia
  • Produk boleh dipotong mengikuti size
  • Sila hubungi kami untuk Carta Tahan Bahan Kimia Produk

Catatan - Grid Beracuan MG25-38 telah diuji untuk ketahanan berat 7.5kN (Berat biasa untuk lalu lintas pejalan kaki) dan pesongan kurang daripada 10mm mengikut BS4592 Bahagian 6

Sila hubungi kami untuk butiran pemasangan dan penggunaan.
