FRP Panel Water Tanks in Data Center Cooling System

11 Jun 2024

FRP Panel Water Tanks in Data Center Cooling Systems | Importance and Benefits

FRP Panel Water Tanks in Data Center Cooling Systems | Importance and Benefits

FRP Panel Water Tanks and Data Center Cooling Systems

The Role of FRP Panel Water Tanks in Data Center Cooling Systems


Data centers, or centres, are the backbone of modern digital infrastructure, housing critical IT equipment that requires efficient thermal management and air conditioning to operate optimally. A critical component of many cooling systems is the water tank, and Fiberglass-Reinforced Plastic (FRP) sectional panel water tanks have become a popular choice due to their durability, efficiency, and reliability.

Why Cooling Systems are Crucial for Data Centers?

Importance of Cooling Systems

Data centers generate a significant amount of heat due to the high density of electronic equipment. Efficient cooling systems are essential to:

  • Prevent overheating
  • Maintain equipment performance
  • Extend the lifespan of IT hardware
  • Ensure continuous operation

Understanding FRP Panel Water Tanks

What are FRP Panel Water Tanks?

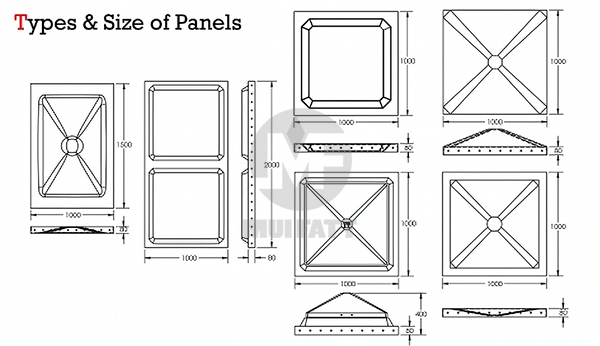

FRP Panel Tank, Different Types of PanelsFRP panel water tanks are modular tanks made from high-strength, corrosion-resistant fiberglass reinforced plastic. These tanks are assembled on-site by connecting individual angular panels which consist of roof panels, wall panels, bottom panels, manhole cover panels, and inlet/outlet/overflow/scour panels, making them highly customizable and easy to install.

Overview of FRP panel water tanks in data center cooling systems

FRP panel water tanks play a crucial role in maintaining the cool temperature of data centers. These tanks are large, sturdy containers that store water to aid in cooling down the electronic equipment within the facility. Crafted from durable materials, they ensure longevity and reliability. Their compact design allows them to fit seamlessly into confined spaces, making them ideal for efficient operations.

Benefits of FRP Panel Water Tanks

  • Durability: FRP tanks are resistant to corrosion, chemicals, and environmental stress.
  • Lightweight: Easier to transport and install compared to traditional materials.(Little Trivia: FRP panel water tanks, made from a composite fiber, provide the durability of steel and concrete but are significantly lighter, weighing up to 80% less. This allows for quick and cost-effective installation with minimal labor requirements.)
  • Customizable: Can be tailored to specific size and capacity requirements.
  • Low Maintenance: Requires minimal upkeep, reducing long-term operational costs.
  • Temperature Resistance: Can withstand extreme temperatures, making them ideal for data center environments.

Role of FRP Panel Water Tanks in Data Center Cooling Systems

Enhancing Cooling Efficiency

FRP panel water tanks play a pivotal role in maintaining the efficiency of data center cooling systems. They provide reliable water storage for cooling towers, chillers, and other cooling mechanisms, ensuring a consistent supply of cooling water in data centres.

Benefits for Data Centers

  • Consistent Cooling: Ensures a steady supply of water to cooling systems, preventing thermal spikes.
  • Space Efficiency: Modular design allows for optimal use of available space within the data center.
  • Cost-Effective: Long lifespan and low maintenance requirements lead to reduced total cost of ownership.
  • Environmental Safety: FRP materials are non-toxic and environmentally friendly, contributing to sustainable operations.

Advantages of using FRP panel water tanks over other materials in data centers

FRP panel water tanks are incredibly beneficial for data center cooling systems. They serve as the ultimate solution for water storage due to their durability, lightweight nature, and resistance to rust, unlike traditional metal tanks. Their easy installation and low maintenance requirements make them an ideal choice for ensuring the smooth operation of data centers. By opting for FRP tanks, data centers can optimize space utility and cost-effectiveness while maintaining efficient cooling systems. Let's explore further Why FRP tanks stand out as the top preference for data center cooling needs!

Comparison of FRP, Metal, and SMC Materials






Lower cost

Higher cost

Moderate cost




Moderate weight

Corrosion resistance


Prone to corrosion



Easy installation

Complex installation

Moderate installation


Low maintenance

High maintenance

Moderate maintenance



Susceptible to damage


Insulation properties

Good insulation

Poor insulation

Good insulation

Energy efficiency benefits of using FRP panel water tanks in data center cooling systems

FRP panel water tanks prove to be highly beneficial for data centers by significantly reducing energy consumption. Their usage enables data centers to efficiently maintain optimal water temperatures without excessive electricity usage. This results in enhanced performance of cooling systems while minimizing power consumption, leading to cost savings and environmental benefits. Additionally, the robust nature of FRP tanks ensures longevity, eliminating frequent replacement concerns. In conclusion, integrating FRP panel water tanks in data center cooling systems is a wise decision for promoting energy efficiency and sustainability.

Different sizes of FRP panels available for data center water tanks

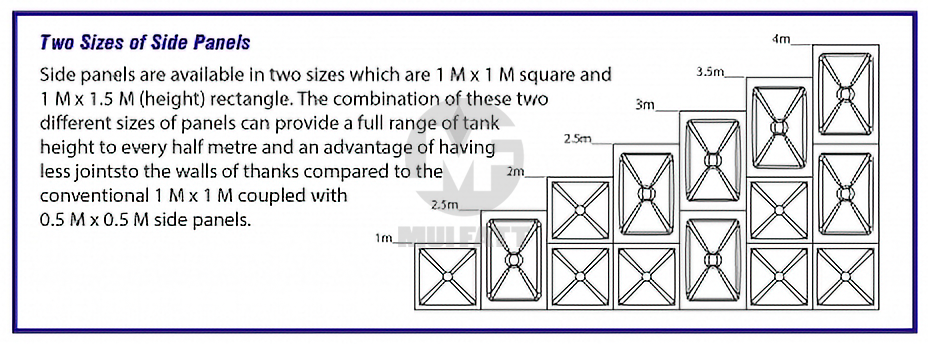

FRP Panel Tank HeightLooking for the perfect water tank size for your data center cooling system? Various sizes of FRP panels are on hand to suit your specific requirements. Whether your data center is small or large, there's an ideal FRP panel water tank to ensure top-notch cooling and performance.

Mui Fatt side panels are available in two (02) sizes which are 1m x 1m square and 1m x 1.5mH rectangle. The combination of these two (02) different sizes of panels can provide a full range of tank height to every half meter and an advantage of having less joints to the walls of tanks compared to the conventional 1m x 1m coupled with 0.5m x 0.5m side panels.

Recommended concrete plinth size for water tank installation

When you install a water tank for cooling a data center, it's crucial to ensure that the concrete base beneath it is appropriate. The size of the concrete plinth required may differ based on the tank's dimensions and your specific needs. This base not only offers a strong support for the tank but also aids in evenly distributing its weight. Adhering to the recommended guidelines for the concrete plinth size guarantees that your water tank is well-supported and operates effectively in cooling your data center.

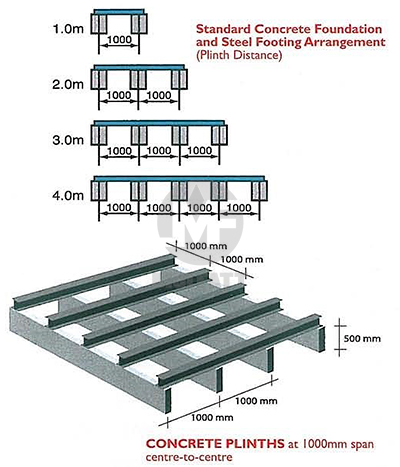

Typical Concrete Plinths Support

The concrete plinths should have:Standard Concrete Foundation and Steel Footing Arrangement (Plinth Distance)

  1. Width of 300mm and height of at least 500mm.
  2. Levelness to maximum tolerance of 5mm along and among all the plinths.

The Steel Skid Base is designed according to tank height. C-channels or I-beams are used depending on concrete plinth span and tank height.

Mui Fatt Panel Tank Steel Skid Base Guide

Tank Height

Concrete Plinth Span


1.0 m

C-Channel 75 x 40

1.5 m

C-Channel 75 x 40

2.0 m

C-Channel 75 x 40

2.5 m

C-Channel 150 x 75

3.0 m

C-Channel 150 x 75

3.5 m

C-Channel 150 x 75

4.0 m

C-Channel 150 x 75

Case studies showcasing successful implementation of FRP panel water tanks in data center cooling systems

FRP panel water tanks play a crucial role in maintaining optimal temperatures for computers in data centers. Studies demonstrate that the utilization of FRP tanks enhances the efficiency of cooling systems, resulting in smoother and faster operations within data centers. The impact of FRP tanks on data center cooling systems is profound and continues to revolutionize the industry.

Case Studies and Real-World Applications

Several leading data centers have adopted FRP panel water tanks for thermal storage to enhance their cooling systems. These installations have demonstrated improved cooling efficiency, reduced maintenance costs, and increased system reliability.


FRP panel water tanks are a vital component in the cooling systems of modern data centers. Their durability, efficiency, and low maintenance requirements make thermal storage tanks an ideal choice for ensuring reliable and effective cooling. By integrating FRP tanks, data centers can achieve enhanced performance, longevity, and operational cost savings.

Frequently Asked Questions

What is the lifespan of an FRP panel water tank?

FRP panel water tanks typically have a lifespan of 20-30 years, depending on environmental conditions and maintenance practices.

Are FRP water tanks customizable?

Yes, FRP water tanks are highly customizable. They can be tailored to specific dimensions and capacity requirements, making them ideal for various applications.

How do FRP tanks compare to traditional steel tanks?

FRP tanks are lighter, more corrosion-resistant, and require less maintenance compared to traditional steel tanks. This makes them a more cost-effective and durable option for data centers.

What maintenance is required for FRP water tanks?

FRP water tanks require minimal maintenance. Regular inspections and cleaning to prevent algae growth and sediment buildup are usually sufficient to keep them in optimal condition.

Are FRP tanks environmentally friendly?

Yes, FRP tanks are made from non-toxic materials and are environmentally friendly. They contribute to sustainable practices in data center operations.
